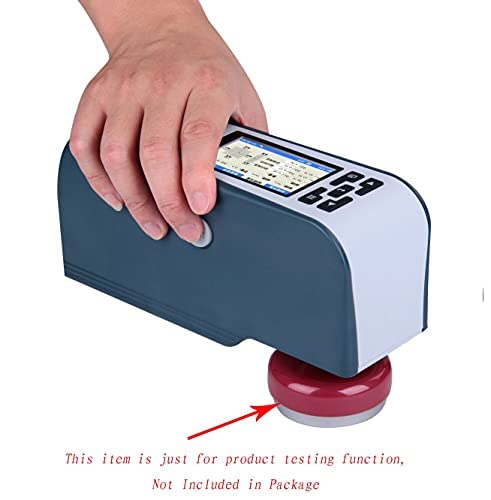

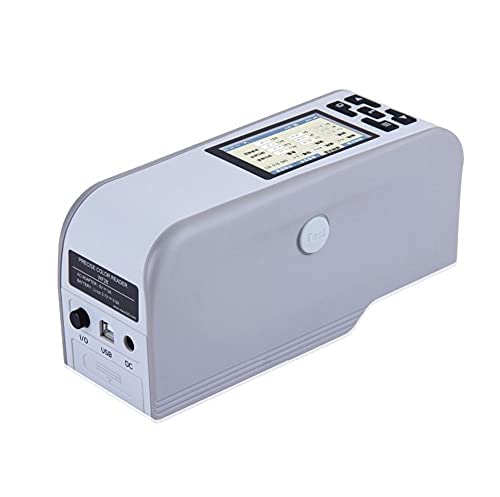

Precise Colorimeter Color Meter with Measuring Caliber 4mm Specially for Cambered Surface with Illumination Condition 8/d TFT True Color Display Screen

WF32 more light, more color difference formula to meet customer demand for more measurements. Technical Specifications * Model:WF32 (4mm) * Display Mode: CIELAB.CIELCH.CIEXYZ.CIELUV.HunterLAB.sRGB * Color Difference Formula: △E*ab、△ECMC、△EISO、△ECIE94、△EFCMⅡ、△ELuv、△Ehunter、△EsRGB * Yellowness and Whiteness: Ganci whiteness. ISO brightness. YI yellowness * Illumination Condition: CIE Recommendation:8/d * Light Source: LED blue excitation * Sensor: Photodiode array * Measurement Caliber: φ4mm * Measurement Condition: Observer:CIE 10°Standard observer, Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) , Contain light way:SCI SCE * Measurement Range: L: 0 to 100 * Repeated Accuracy: E<0.03 (take the deviation average after 30 times measuring the whiteboard) * Table Difference: E<0.2 * Measurement Interval: 0.5 Sec. * Average Measuring Function: Average measuring frequency: 1-32 times * Color Simulation Function: yes * Storage Capacity: Type sample data: 100 with testing sample data: 20000, Whiteness/ yellowness data: 200 * Language Patterns: English/Simplified Chinese/Traditional Chinese * Quality Control Software: (Color-Analysis System) software * Battery Charging Time: 8 hrs * Battery: Li-ion battery, 5000 times Measurement * Lifetime of Bulb: 5 years more than 1.6 million measurements * Display Screen: TFT true color 2.8inch@(16:9) Resolution ratio:400x240 * Interface of External: USB2.0 (USB-B)- data communication with (color analysis system)software RS-232 (115200bps)- connected with micro printer * Weight: 700g; Size: 199*68*90mm * Standard Accessories: Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD(Color analysis software)/User manual/Warranty card * Optional Accessories: Flour measuring device/Liquid measuring device/Micro printer

• ◆ High-end color difference meter WF32 to fill the gaps in the field of color difference meter high repeat accuracy, repeatability of Δ<0.03;
• ◆ With 8 standard light source, to fill gaps in the domestic color difference meter in the multiple light sources; Display Mode: CIELAB.CIELCH.CIEXYZ.CIELUV.HunterLAB.sRGB
• ◆ Eight kinds of color difference formula (△ E * ab, △ ECMC, △ EISO, △ ECIE94, △ EFCM Ⅱ, △ ELuv, △ Ehunter, △ EsRGB);
• ◆ Portale: Structure Design in line with Ergonomics,and easy-to-use Operation.English operating system; Precison: Precison measurement performance with core technological competence
• ◆ Caliber 4mm version is a specially designed, high performance precision colorimeter, especially suitable for small area, cambered and other special surface. It can bring great convenience for the user in the color quality detection of small devices, small parts and special type of arc.
