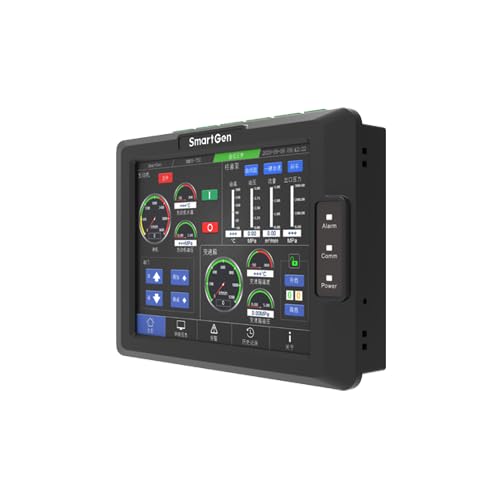

HMU8-750 Display Module, 8-inch 800 * 600 Resolution capacitive Touch Screen

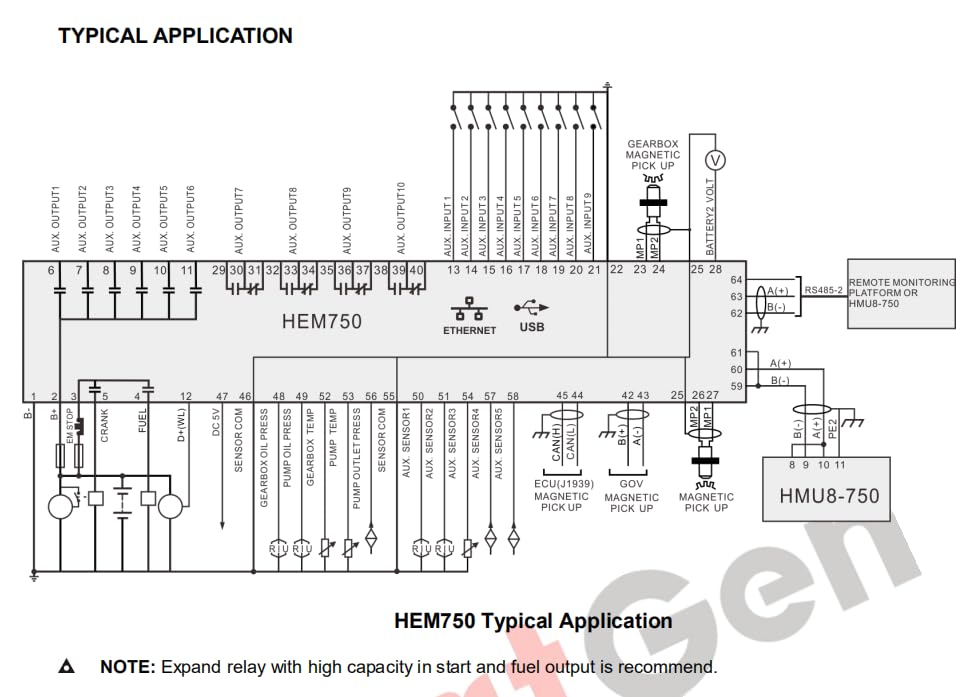

Check more our products on smartgen-america website. HEM750 Display Module. HEM750 Fracturing Truck Controller is used for single fracturing truck control, which can realize functions of manual start and stop, throttle control, gear position control, data measurement, alarm protection and “four remotes” (remote control, remote measuring, remote communication and remote adjusting). It applies split mode of “Master Control + Display” and transmits data through RS485. The display module of the controller applies 8-inch 800*600 resolution capacitive touch screen with Chinese and English display, which can realize the control, data monitoring and parameter adjustment of the master control module with simple operation and high reliability. The master control module of the controller accurately monitors various working status of engine, gearbox and plunger pump, making it possible to realize the precise control and alarm protection for the plunger pump. It has SAE J1939 interface and can communicate with a variety of ECU (ENGINE CONTROL UNIT) who has J1939 interface. Compared with PLC controlled fracturing truck system, it has compact structure, simple connection and higher reliability.

• The display module adopts an 8-inch LCD with 800*600 resolution, HMI display and capacitive touch screen operation. Chinese and English operations are optional for on-site selection and convenient for commissioning staff;
• The display module can record and display the last 2000 outlet pressure and flow data points after the plunger pump’s work, and the recording interval is 5 seconds;
• The speed of homepage interface of the display module, sensor head and bar chart could display the alarm set value and maximum range of the master control module;
• With the control functions of engine emergency stop, startup, shutdown, throttle increase/decrease and slight increase/decrease;
• With the control functions of upshift/downshift of gearbox, one-key idle and brake.
